  • Okulárový výtah TS Optics 3.7" Deluxe Rack & Pinion Focuser with Micro Transmission
  • Okulárový výtah TS Optics 3.7" Deluxe Rack & Pinion Focuser with Micro Transmission

    • Číslo produktu: TSFOC37
    • Výrobce: TS Optics
    • Váha dodávky: 2.04 kg

    Cena s DPH: 15 595,-
    1-2 týdny
    Hlídat dostupnost - Okulárový výtah TS Optics 3.7" Deluxe Rack & Pinion Focuser with Micro Transmission
    Chci být informován až bude zboží skladem

    *

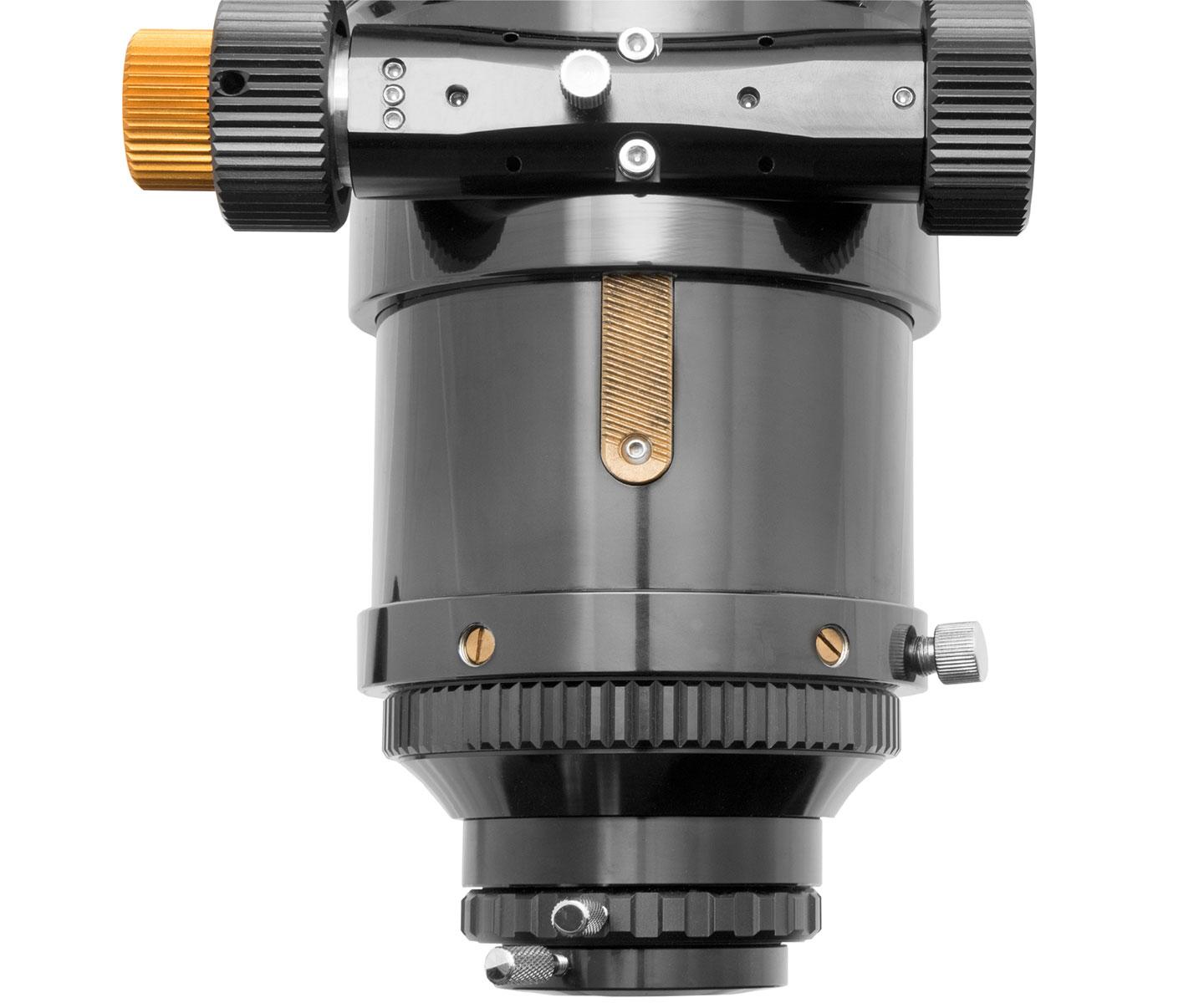

TS-Optics 3.7" RAP Focuser

The quality of this focuser comes close to the well-known Feather Touch focusers from Starlight. The large focuser allows even using full-frame size and medium-format cameras without vignetting, of course with suitable correctors.
♦ Drawtube with rack & pinion drive - no friction - no bending like the Crayford focuser.
♦ Internal baffles against reflections
♦ Clear aperture: 102 mm
♦ Drawtube travel: 98 mm
♦ 360 Rotation for optimal selection of the field of view
♦ Self centering 2″ and 1,25″ adapter for correct clamping on the optical axis.
♦ Connection thread for photo adaptions: M100x1 thread (female), M92x1 thread (female), M68x1 ZEISS style thread (female)
Lengths, retracted, measured from beginning of the 117 mm female thread:
♦ 103 mm to the end of the internal M100 thread (no rotation possible)
♦ 130 mm to the end of the internal M92 thread (rotation possible from here on)
♦ 142 mm to the end of the internal M68 thread
♦ 163 mm to the end of the 2″ adapter
♦ 172 mm to the end of the 1,25″ adapter

Connection at the telescope side: M117x1 thread (female), 8 mm deep
Connection threads at camera side: M100x1 (non rotatable), M92x1 and M68x1 thread (all three female)
Connectors at eyepiece side: 2″ and 1,25″ with compression ring - self centering
Minimal height (retracted): 103 mm (end of M100 thread)
Maximum height (retracted): 172 mm (end of 1,25″ adapter)
Drawtube travel: 98 mm
Clear aperture: 102 mm with anti-reflection thread
Speed reduction: 1/10 mikro transmission
Payload: up to 9 kg
Weight with rotation adapter: 2040 g
Obsah balení:
3.7" RAP focuser
M117 telescope connection adapter with 360 rotation
2″ adapter with compression ring
1,25″ barrel adapter with compression ring and 2″ filter thread
