  • TS Optics 360° Rotation & Thread Adapter - M63 to M68, M54 and 2″
  • TS Optics 360° Rotation & Thread Adapter - M63 to M68, M54 and 2″

    • Číslo produktu: CAA
    • Výrobce: TS Optics

    Cena s DPH: 2 765,-
    1-2 týdny
    Hlídat dostupnost - TS Optics 360° Rotation & Thread Adapter - M63 to M68, M54 and 2″
    Chci být informován až bude zboží skladem

    *

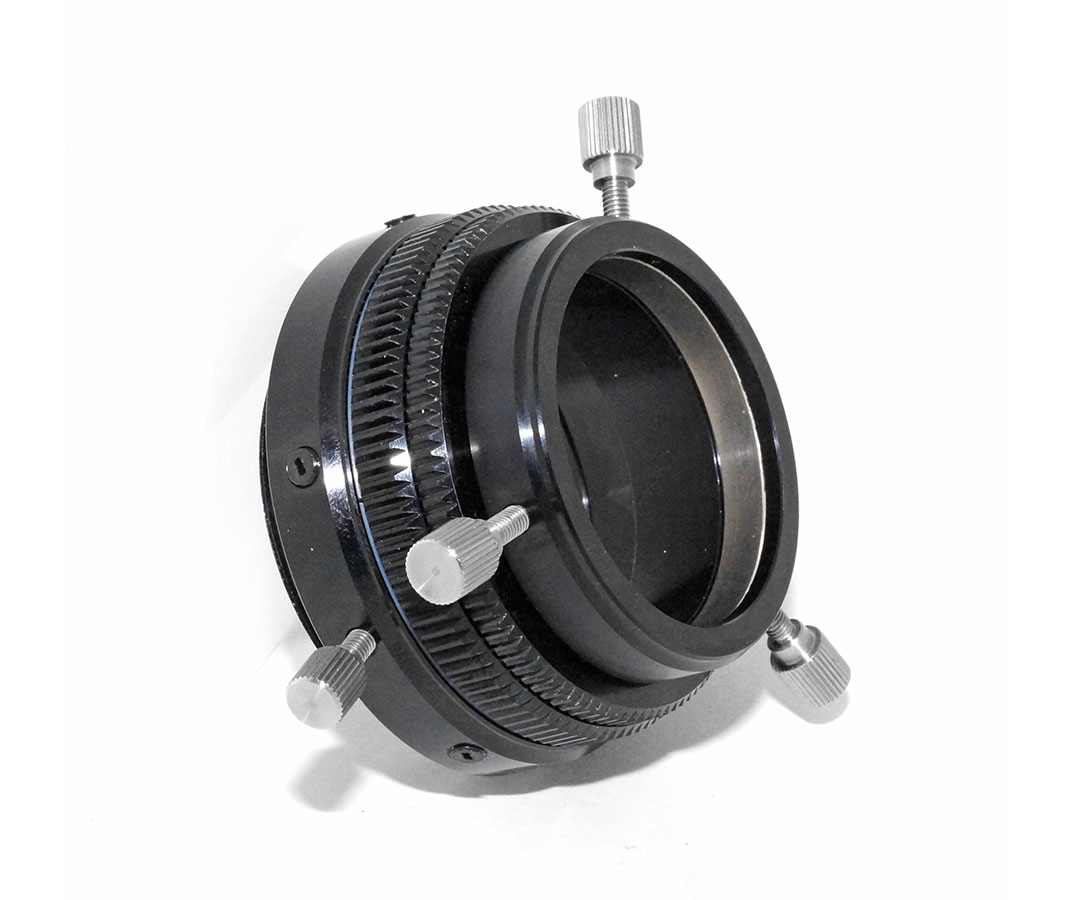

TS-Optics Rotation and Conversion Adapter from M63x1 to M68x1 and M54x0.75

Thread your accessories to your focuser for better stability and use the 360 rotation for best possible camera orientation.
The adapter CAA has a male M63x1 thread at the telescope side, it fits, among others, to:
♦ TS PhotoLine apos with 2.5" R&P focusers
♦ TS 2.5" rack and pinion focuser RPA82
♦ TS 2.5" rack and pinion focusers TSFOCR25 and TSFOCR25S
♦ Via the TS adapter M68a-M63i, you can attach the CAA also to focusers with the M68 connection thread.
At the camera side, the adapter CAA has an M68x1 and an M54x0.75 thread (both female), it allows the threaded connection of:
♦ TSRED279 2″ 0.79x reducer and corrector for apos - the reducer has a male M54x0.75 thread
♦ TSRED379 3" 0.79x reducer and corrector for apos - the reducer has a male M68x1 thread
♦ TSFLAT2,5 TS full frame APO fiels corrector
♦ Via the TS adapter M68a-M63i you can also adapt the Riccardi reducer RIRED-M63 to the CAA.
The adapter CAA also has a 2″ receptacle with compression ring:
If you don´t want a threaded adaption, you can also use 2″ accessories directly. The adapter with compression ring and three locking screws is included in the scope of delivery.

Connection at telescope side: M63x1 thread (male) - length 7.5 mm
Rotation: 360 rotation with locking screw
Connection at camera side: M68x1 thread (female), M54x0.75 thread (female) and 2″ receptacle with compression ring
Length to the M68 thread: 21 mm (the male M63x1 thread is not taken into account)
Length to the M54 thread: 26 mm (the male M63x1 thread is not taken into account)
Length to the 2″ receptacle: 38.5 mm (the male M63x1 thread is not taken into account)

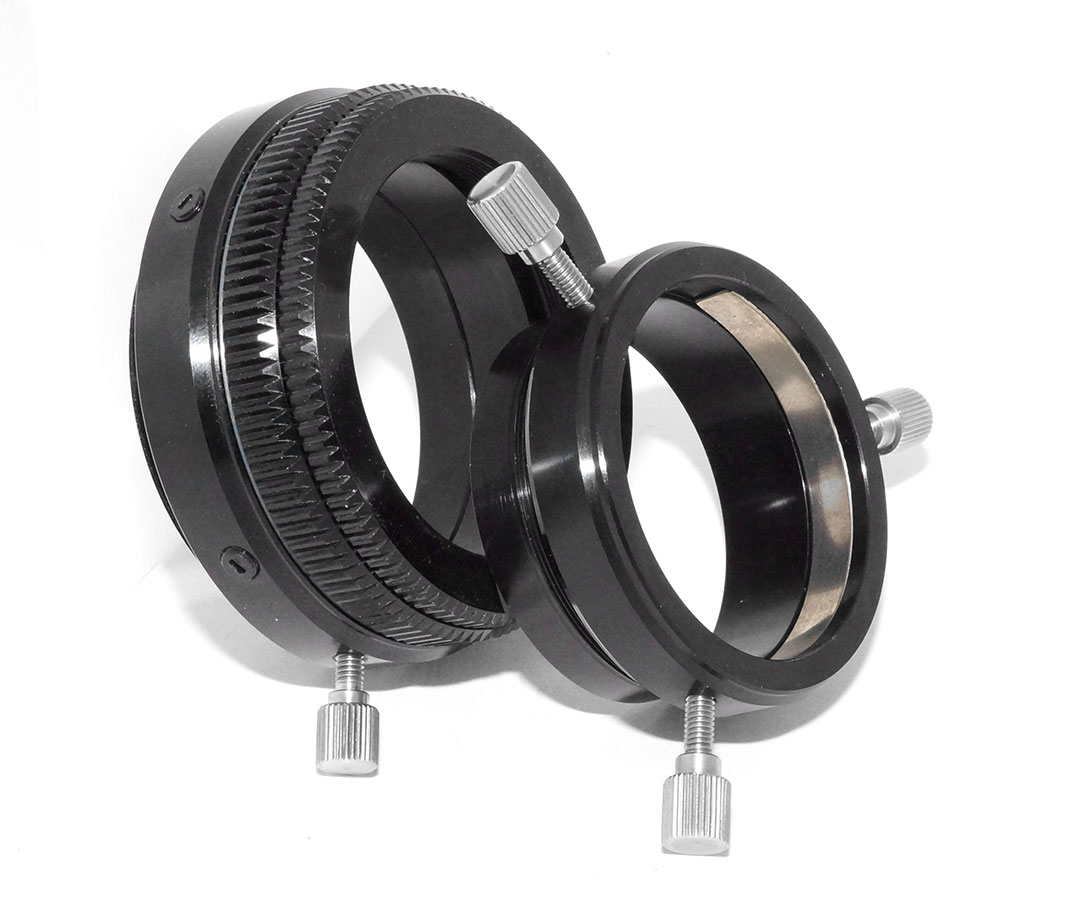

Obsah balení:
CAA rotation adapter M63 to M68
Reduction adapter M68 to M54
Reduction adapter M54 to 2″
