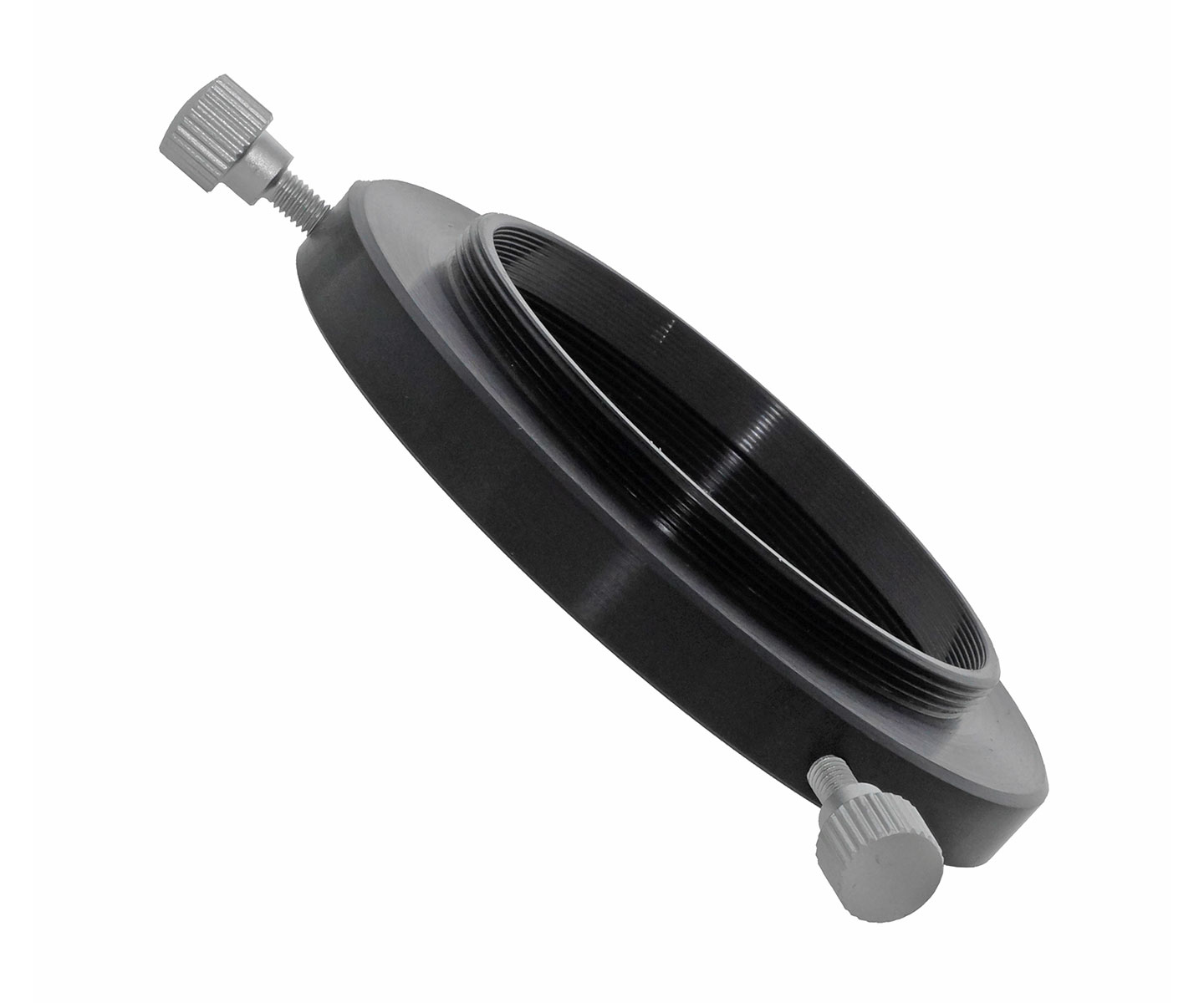

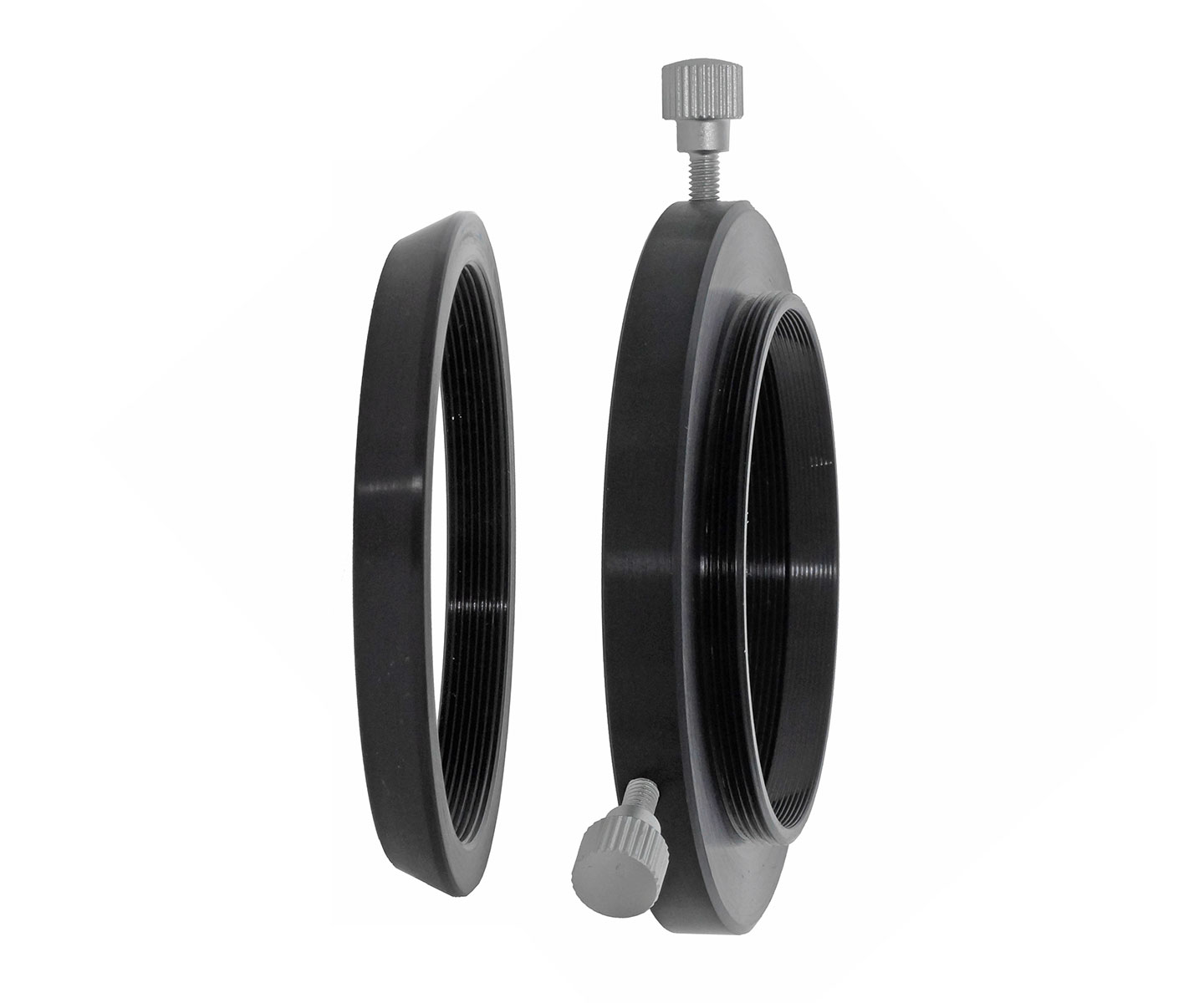

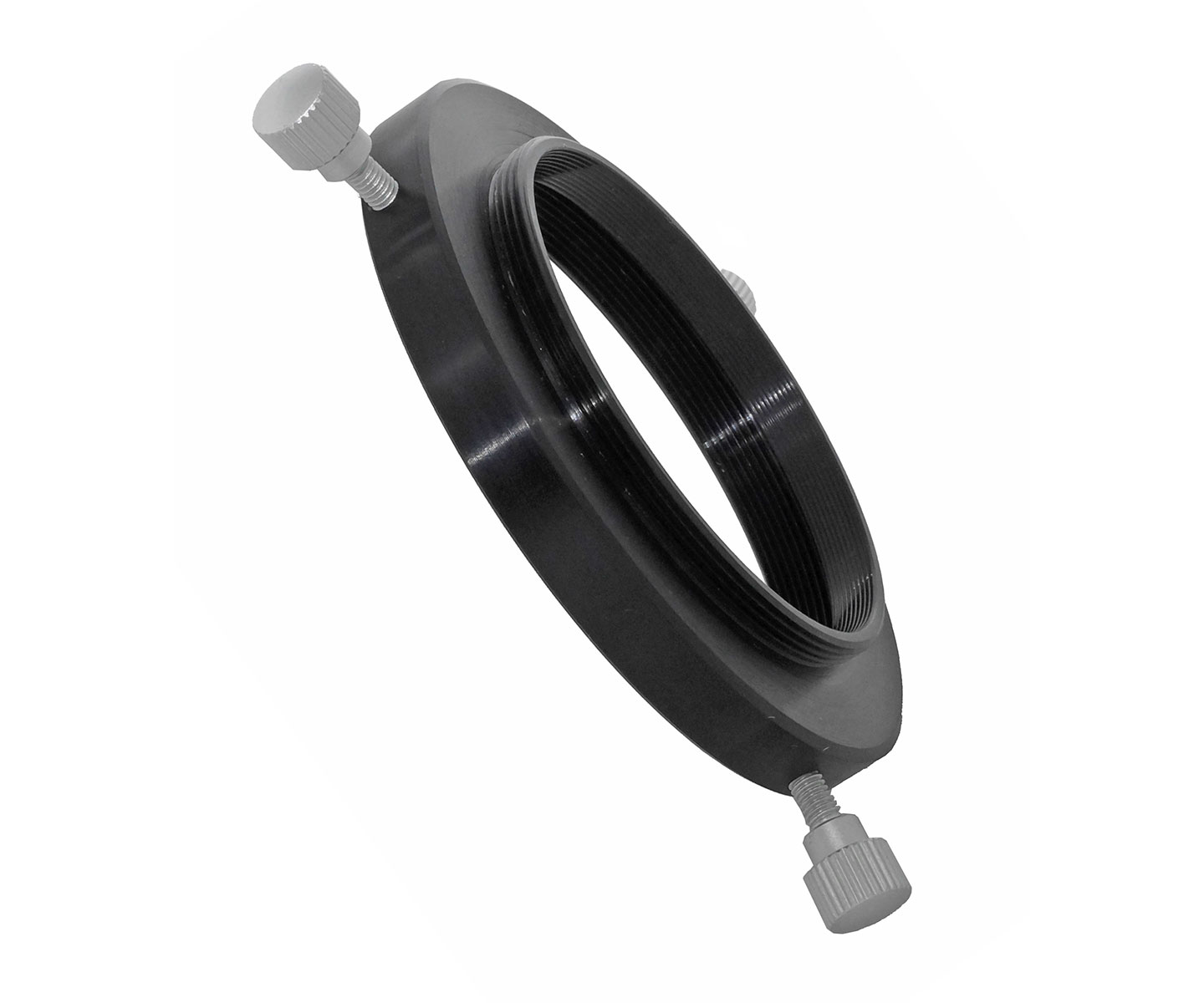

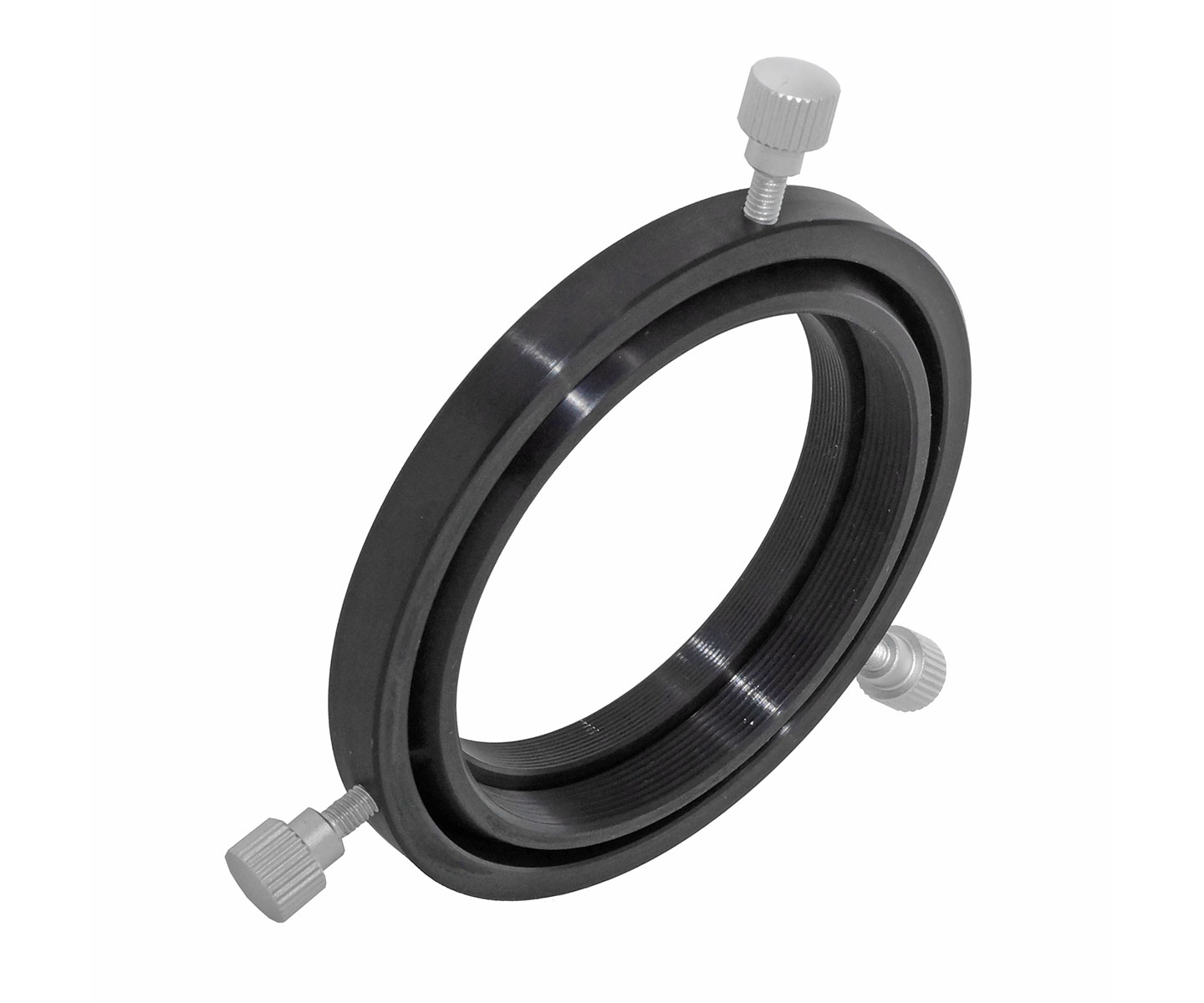

TS-Optics M54x1 Rotation and Quick Coupling with only 10 mm overall length
This adapter is a real problem solver from Teleskop-Service for all astrophotographers, who for example want to connect a coma corrector to a Skywatcher Newtonian and screw it. The rotator comes in between the screw adapter and the M54x1 thread of the focuser.
The application is simple, the rotator is screwed into the focuser. On the camera side, the M54x1 female thread is now available again for further adaptations, but now with the rotation option.
The advantages of the TSM54RO1 adapter:
♦ Only 10 mm optically effective overall length - ideal for short adaptations.
♦ Perfect centering - the inner adapter ring is always exactly in the center - due to the clamping it tightens itself.
♦ The free inner diameter is 51 mm, so the adapter offers free passage for 2″ barrels - for example when a corrector is screwed to the focuser and must be rotatable.
| Connection thread telescope side: |
M54x1 female thread - length 8 mm |
| Connection thread camera side: |
M54x1 male thread - length 3.5 mm |
| Optically effective overall length: |
10 mm (without the external thread) |
| Free inner diameter: |
51 mm |
| Locking: |
Fixing of the adapter position via 3x M4 knurled screws |
