TS Optics 360° Rotation and Quick Changer - M63x1 - 10 mm short

TS-Optics M63 Rotation and Quick Changer with only 10 mm length

This adapter is a true problem solver from Teleskop Service for all astrophotographers who work with the big M63x1 thread system. The adapter provides a quick changer and a 360 rotation at minimal length. Slip-proof knurled head screws allows handling even with gloves.

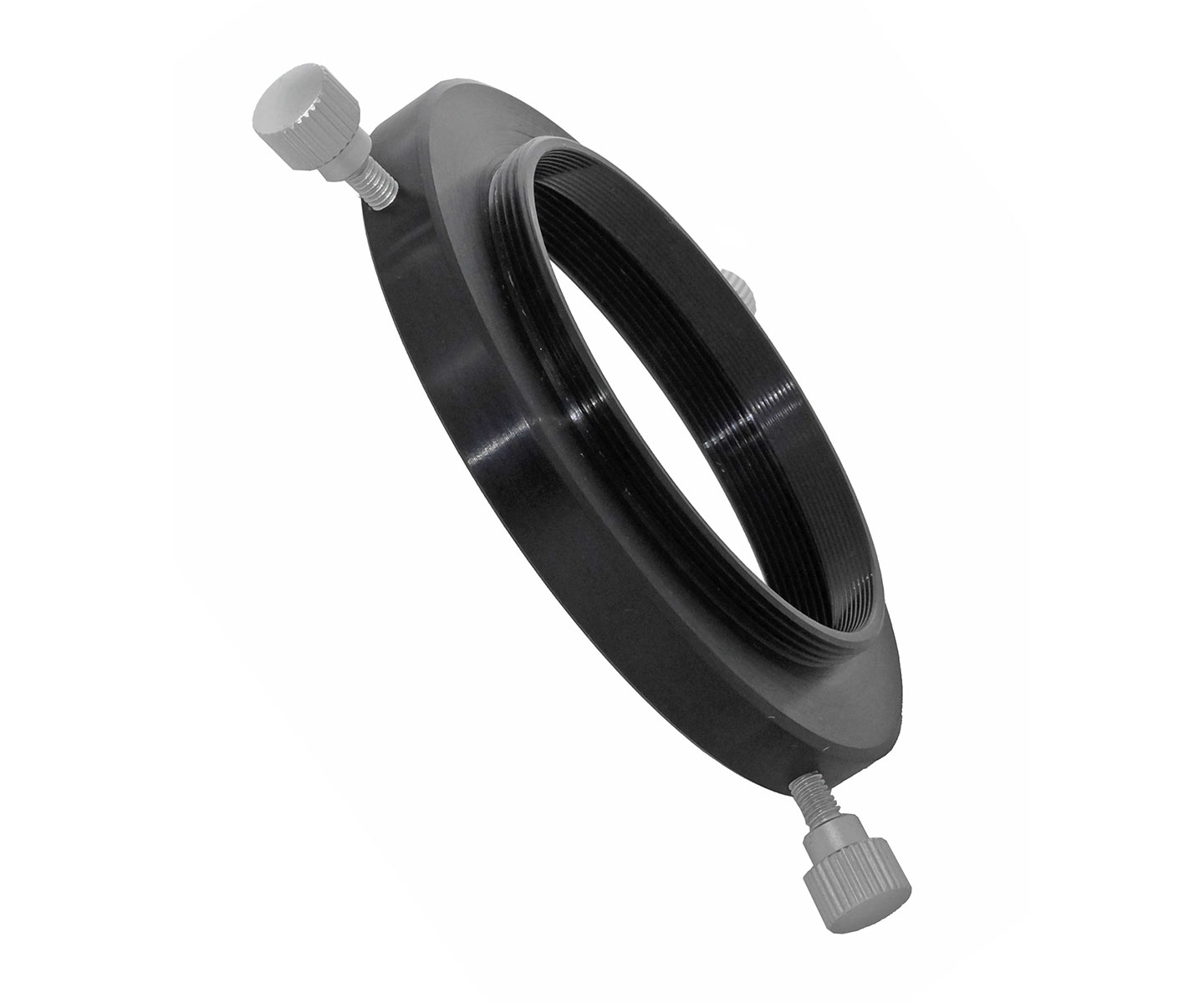

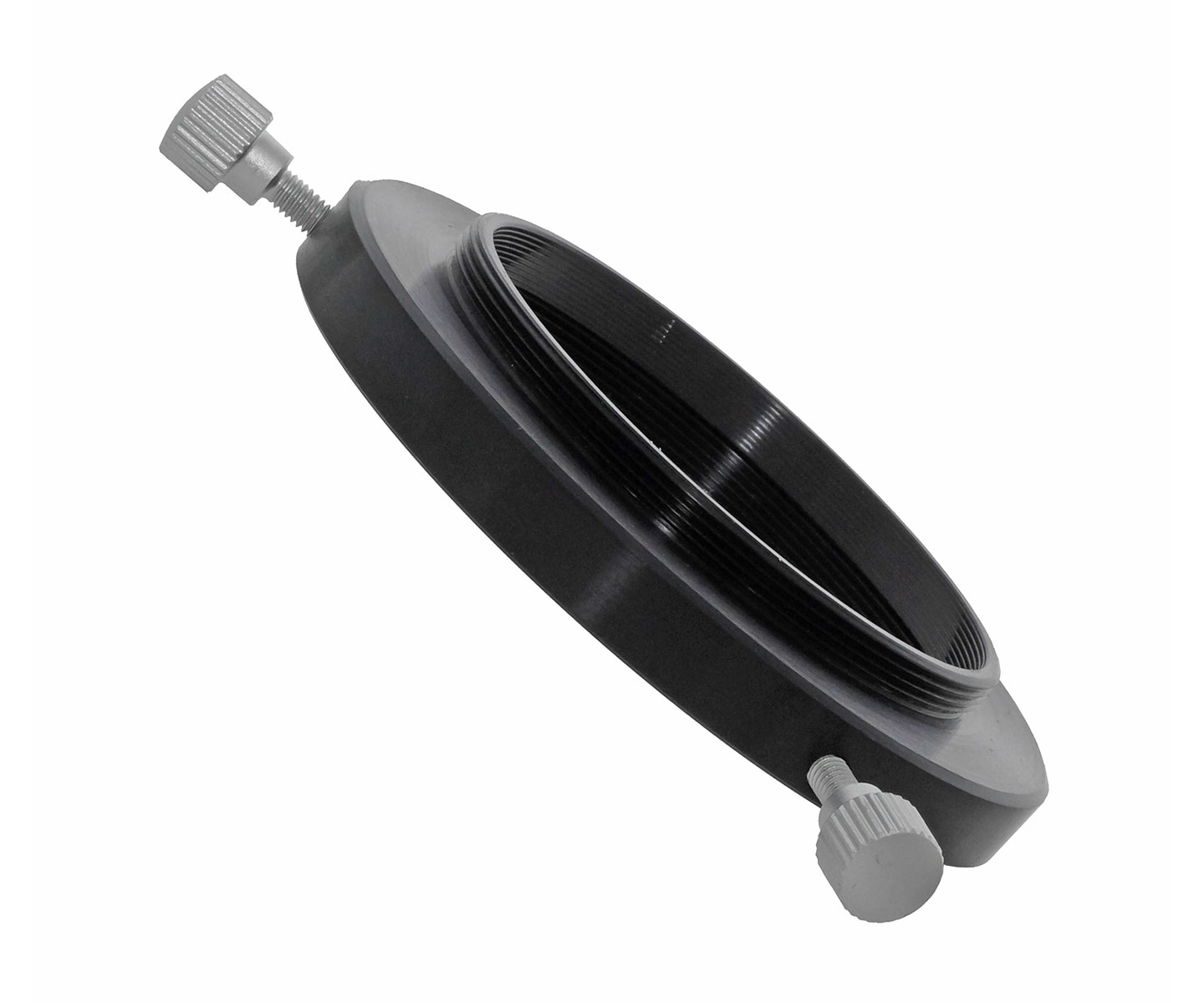

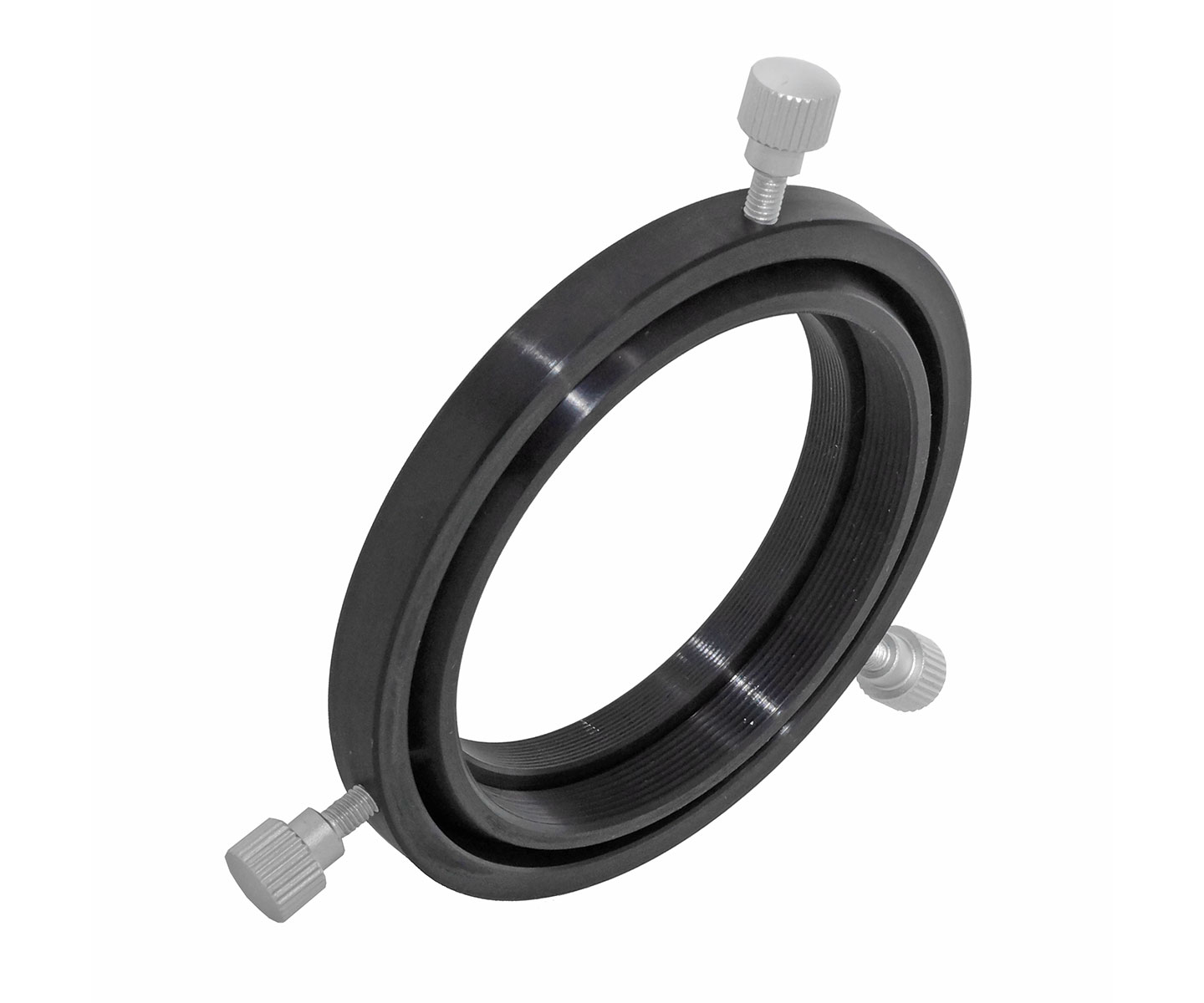

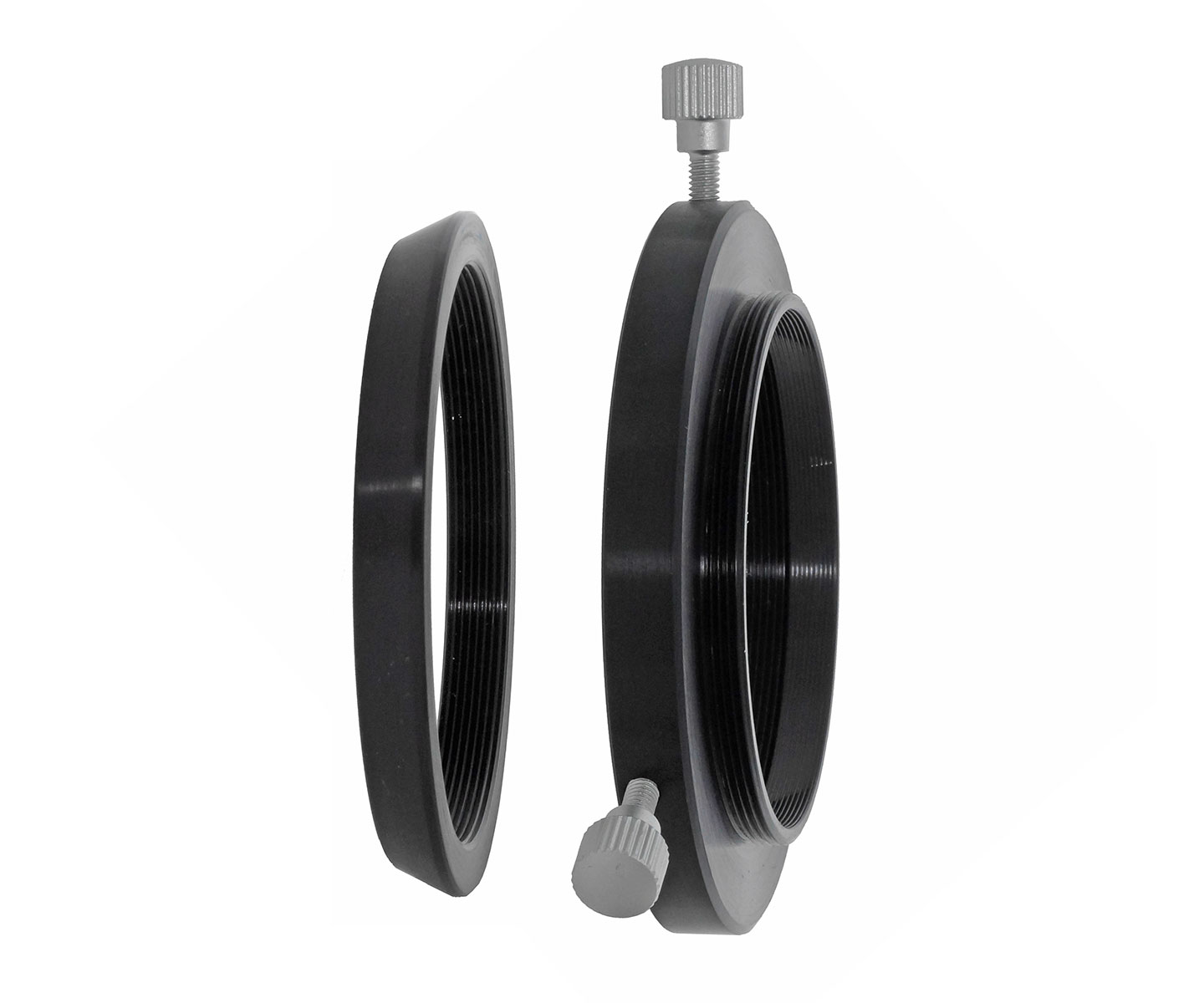

The rotation adapter consists of two parts. The inner, conically tapered adapter establishes connection to the telescope. The outer adapter holds the connection adapter with three screws and establishes the connection to the camera.

The advantages of the TSM63ROTK adapter:

♦ Only 10 mm optical path - ideal for short adaptions
♦ Perfecte centering - the inner adapter ring is always in the middle - by clamping, it automatically tightens itself.
♦ Due to the generously dimensioned wall strengths and long threads, even heavy accessories can be safely attached.

The application fields of the TSM63ROTK adapter:

♦ Quick changer: ... you can detach the camera within seconds, for example for removing dust from the sensor. Unscrewing is prevented, the cables cannot tangle up.
♦ 360 rotation: ... you can turn the camera by 360, thus attaining an optimal placement of the object on the camera sensor.
♦ Improved search for a guiding star when using an off-axis guider: ... if you insert the TSROTM63K in front of the off-axis guider, you can rotate the guider and have a larger field for finding a bright guide star at your disposal.

Practical tip:

If you separate camera and telescope, for example because you want to use a different camera or telescope, one opening remains open. To prevent dust from entering, you can simply fit the corresponding counterpart of a second TSROTM63K with a matching cover (currently only for the male thread, linked in the accessories section) and use it as a cover for the opening.
