TS-Optics M54x0.75 Rotation and Quick Changer with only 10.5 mm length
This adapter is a true problem solver from Teleskop-Service for all astrophotographers who work with big cameras with M54x0.75 connection. The adapter provides a quick changer and a 360 rotation at minimal length. Slip-proof knurled head screws allows handling even with gloves.

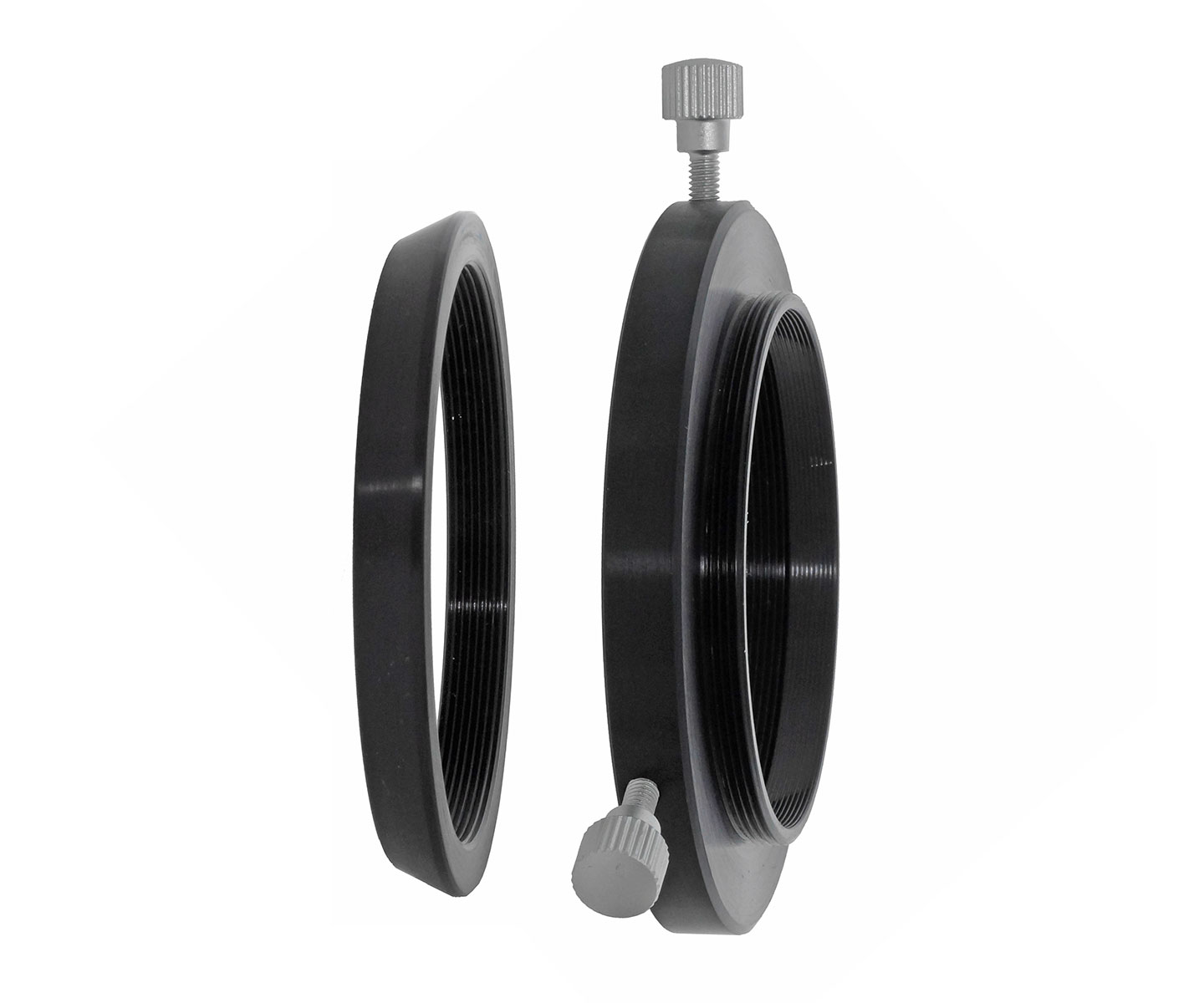

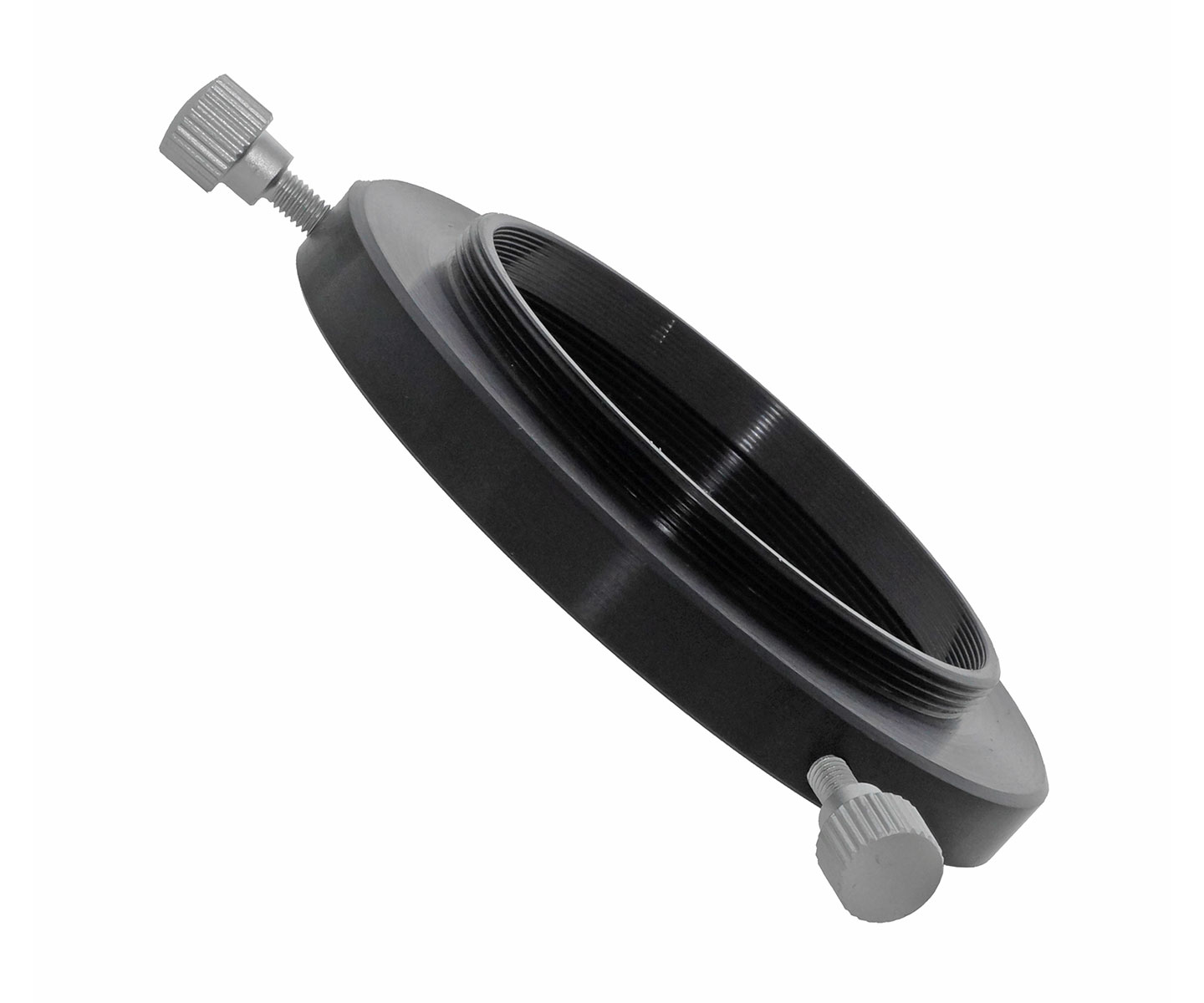

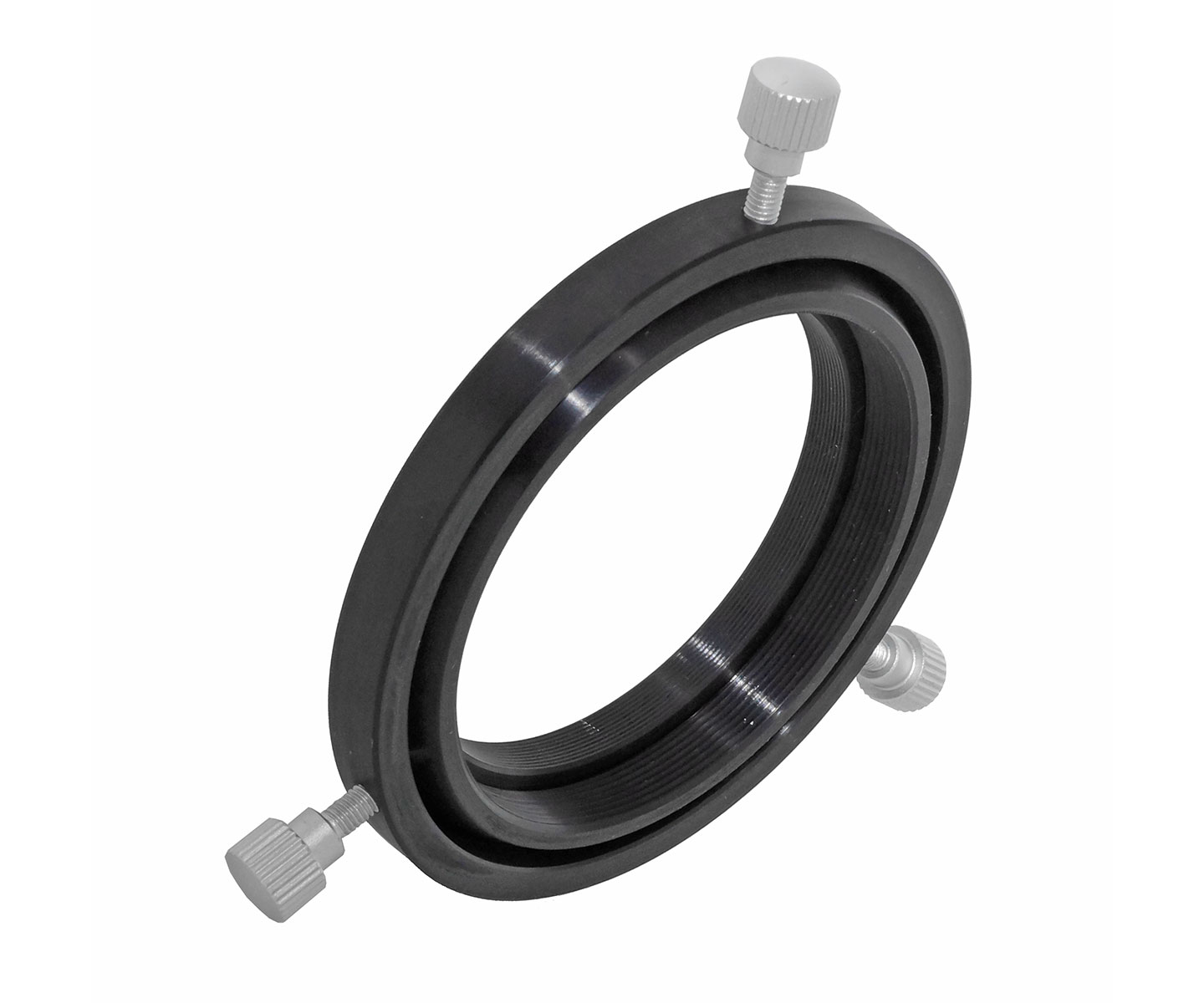

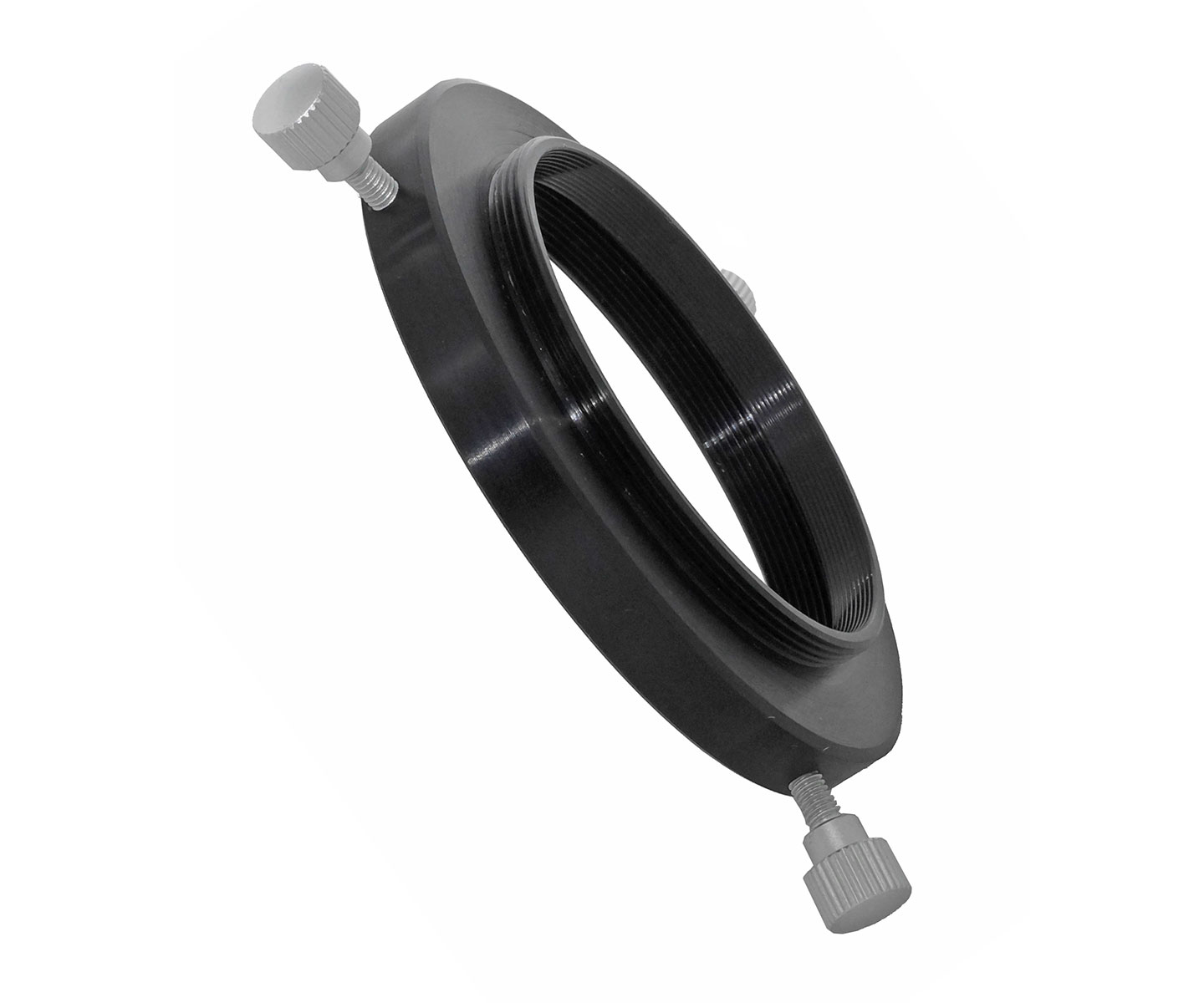

The rotation adapter consists of two parts. The inner, conically tapered adapter establishes connection to the telescope or corrector. The outer adapter holds the connection adapter with three screws and establishes the connection to the camera.
The advantages of the TSM54ROTK adapter:
♦ Only 10 mm optical path - ideal for short adaptions
♦ Perfecte centering - the inner adapter ring is always in the middle - by clamping, it automatically tightens itself.
♦ The free inner diameter is 51 mm, so the adapter offers free passage for 2″ sockets - for example when a corrector is screwed to the focuser and must be rotatable.
The application fields of the TSM54ROTK adapter:
♦ Quick changer: ... you can detach the camera within seconds, for example for removing dust from the sensor. Unscrewing is prevented, the cables cannot tangle up.
♦ 360 rotation: ... you can turn the camera by 360, thus attaining an optimal placement of the object on the camera sensor.
♦ Improved search for a guiding star when using an off-axis guider: ... if you insert the TSROTM54K in front of the off-axis guider, you can rotate the guider and have a larger field for finding a bright guide star at your disposal.
| Connection thread telescope side: |
M54x0.75 (female) - length 8 mm |
| Connection thread camera side: |
M54x0.75 (male) - length 3.5 mm |
| Optical path: |
10 mm (without the male M68x1 thread) |
| Free inner diameter: |
51 mm |
| Clamping: |
Locking of the adapter position by 3x knurled M4 screws |
