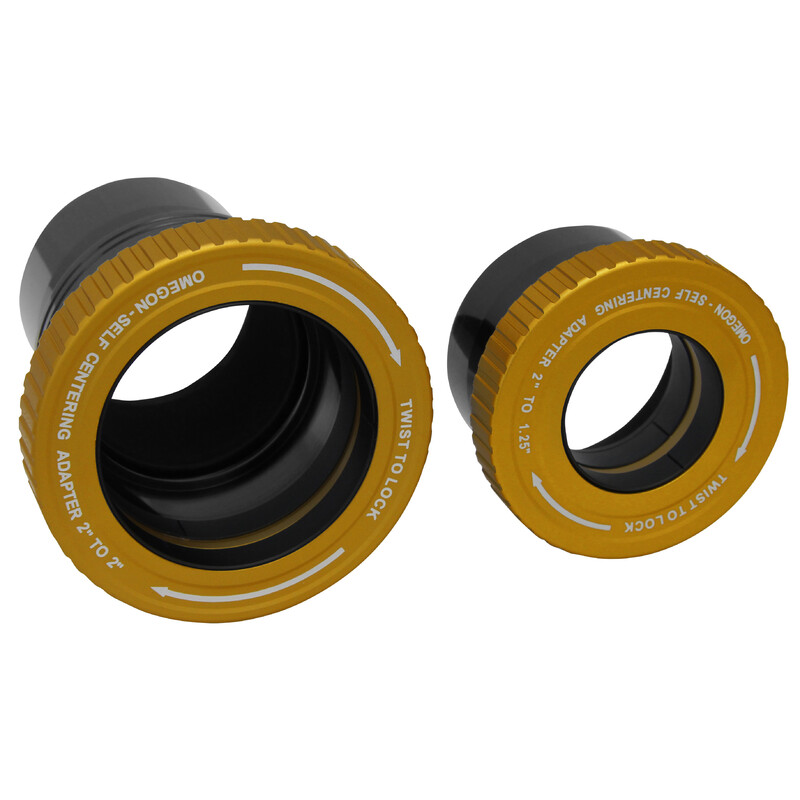

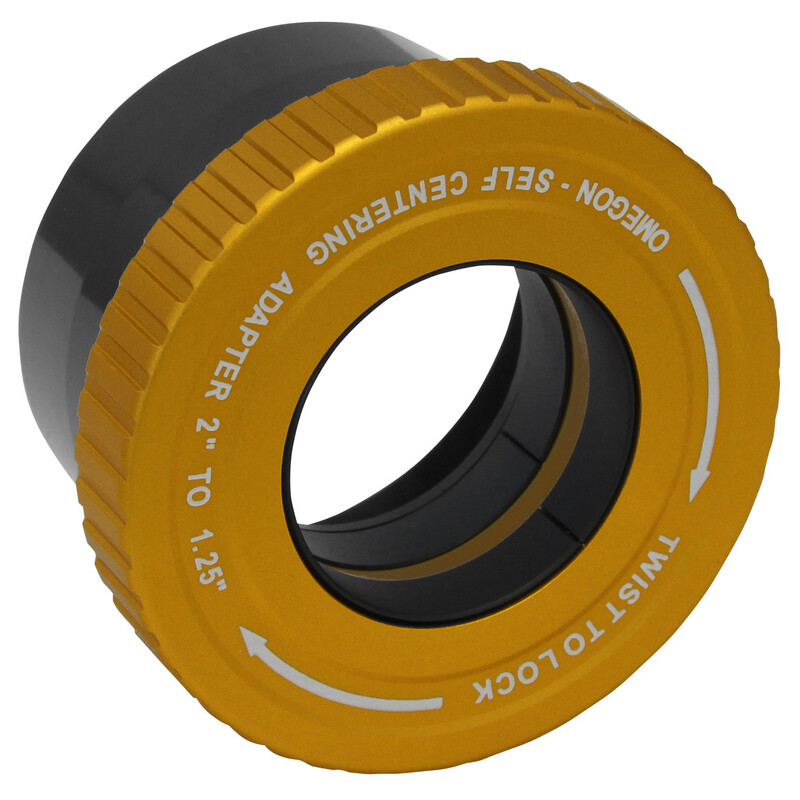

Omegon 1,25″ / 2″ Twist-lock adapter - firmly and gently holds and centres your eyepieces
You know the situation - you've clamped your precious eyepiece using the locking screw on the focuser. But instead of sitting precisely in place, it is tilted or even worse - the screw marks and damages the barrel. But this doesn't need to happen, there is a solution: the Twist-Lock adapter.
The advantages in a nutshell:
- self-centring 2″ to 1,25″ adapter with 2″ thread
- one twist, and your accessories sit firmly in place
- gentle clamping over a large area
For 1,25″accessories - self-centring 2″ adapter
Put your 1,25″ eyepieces or other accessories one: Turn the lock-ring and your eyepiece now sits firmly anchored in place.
Your eyepiece no longer needs its safety groove as the adapter now clamps it over a large area of around 15mm.
1,25″ eyepiece with 2″ adapter - permanently locked
You can also use the 2 "to 1,25″ adapter as a permanent 2″ barrel for example.
Suppose you are observing with some 2″ eyepieces but also have a favourite 1,25″ eyepiece you want to use. Instead of constantly having to fiddle around with adapters, you could simply use this adapter together with the eyepiece and use it with a fixed 2″ barrel.
2″ filter thread
Use Twist Lock adapter as a high-end reduction ring. It is gentle with the accessories and yet clamps them in place with incredible force.
Save money when buying filters - A 2″ filter thread offers the option of using a 2″ screwed filter, even when using a 1,25″ eyepiece.
| Capacity |
|
| Connection (to the telescope) |
2″ |
| Connector (other end) |
1,25″ |
| Optical length(mm) |
13,2 |
| Special features |
|
| Filter thread |
yes |
| Equipment |
|
| Ring clamp |
yes |
| General |
|
| Height(mm) |
Gesamthöhe 38mm (optischer Weg 13mm) |
| Weight(g) |
102 |
| Material |
Aluminium (anodised) |
| Colour |
black / yellow |
| Type of build |
Extension & reduction adaptors |
| Type |
Adaptors |
| Overall size LxWxH(mm) |
61x61x37,6 |
